iPAC-42-MOU 42000BTU 12Kw 1 Drive 5 OUTDOOR UNIT

//iPAC-42-MOU 42000BTU 12Kw 1 Drive 5 OUTDOOR UNIT

iPAC-42-MOU 42000BTU 12Kw 1 Drive 5 OUTDOOR UNIT

iPAC-42-MOU 12Kw Outdoor Unit

42000 BTU Total Capacity

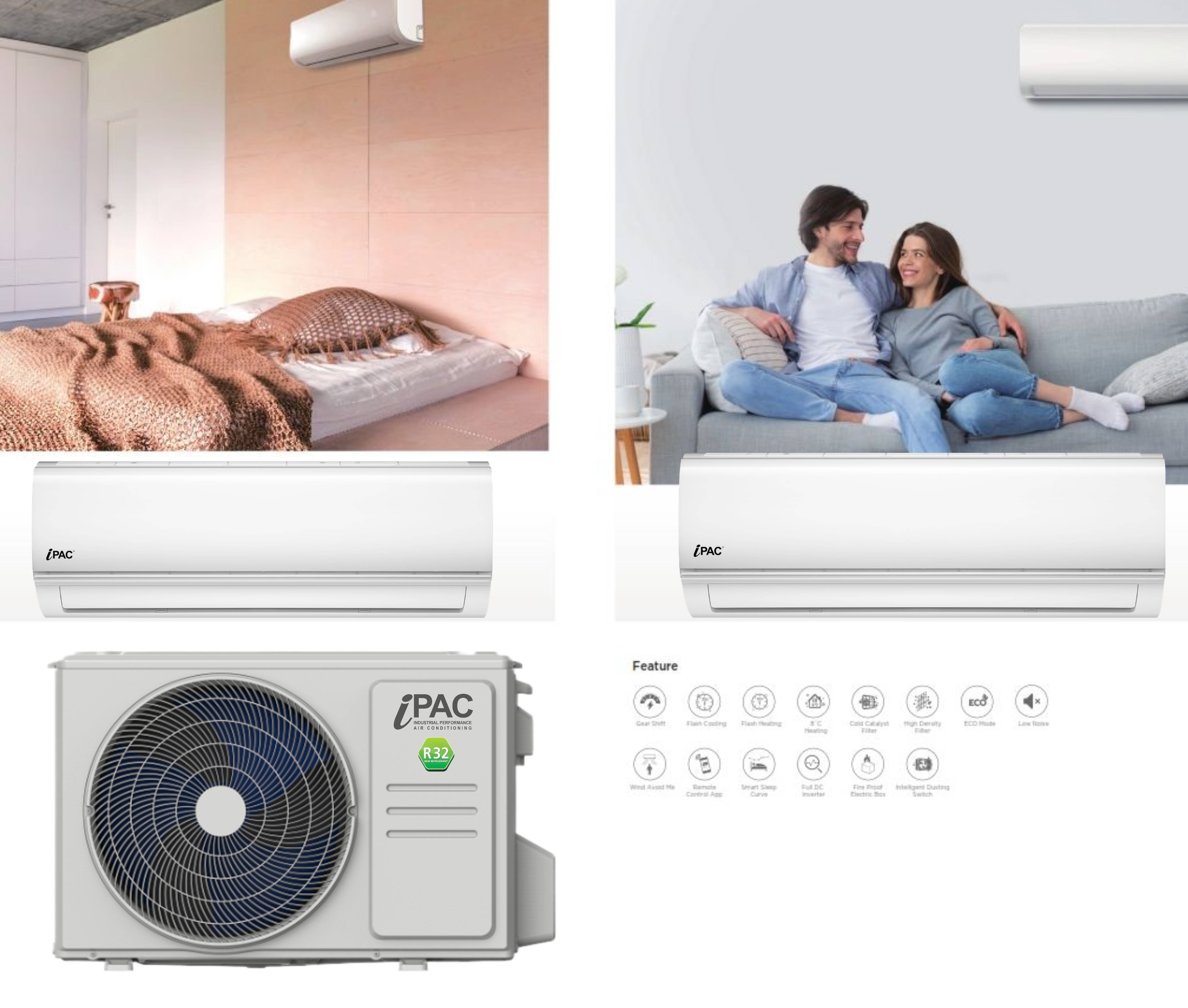

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The iPAC-42-MOU is a highly energy efficient, easy to install, multipurpose multi wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Super energy efficient
  • Compact design – one outdoor unit supports up to three indoor units

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Mix & Match Units to Create a Perfect Climate Control Solution

Our multi split system air conditioning units consist of one to three indoor units, sold separately, all powered by one outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool.

File:PDF file icon.svgView Product Datasheet



View our Stockists

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Category:

Description

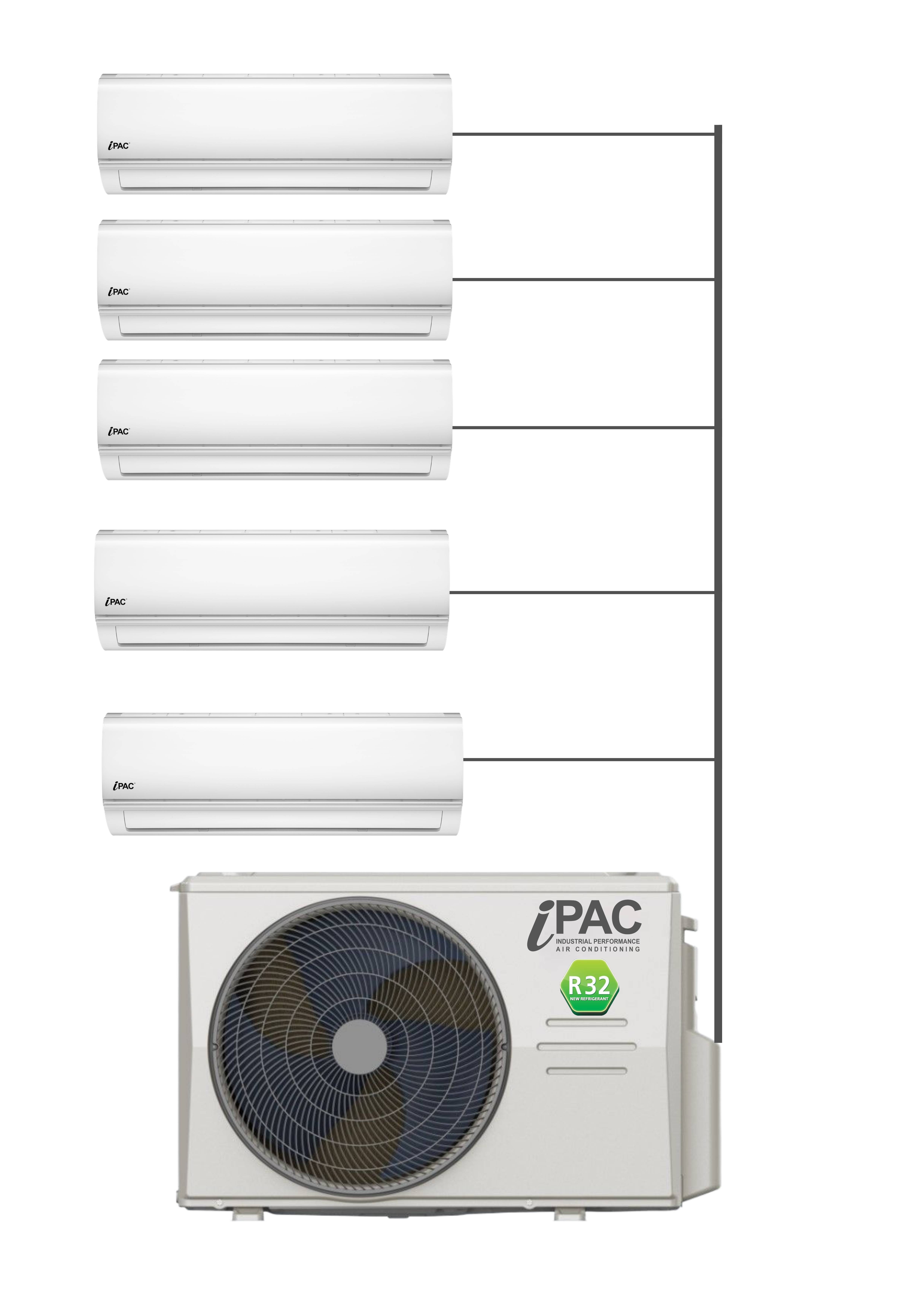

Combinations for up to 5 Units

1 Unit:

  • 9000 BTU
  • 12000 BTU
  • 18000 BTU

2 Units:

  • 9000 BTU + 9000 BTU
  • 9000 BTU + 12000 BTU
  • 9000 BTU + 18000 BTU
  • 12000 BTU + 12000 BTU
  • 12000 BTU + 18000 BTU
  • 18000 BTU + 18000 BTU

3 Units:

  • 9000 BTU + 9000 BTU + 9000 BTU
  • 9000 BTU + 9000 BTU + 12000 BTU
  • 9000 BTU + 9000 BTU + 18000 BTU
  • 9000 BTU + 12000 BTU + 12000 BTU
  • 9000 BTU + 12000 BTU + 18000 BTU
  • 12000 BTU + 12000 BTU + 12000 BTU

4 Units:

  • 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU
  • 9000 BTU + 9000 BTU + 9000 BTU + 12000 BTU
  • 9000 BTU+ 9000 BTU + 9000 BTU + 18000 BTU
  • 9000 BTU + 9000 BTU + 12000 BTU + 12000 BTU
  • 9000 BTU + 9000 BTU + 12000 BTU + 18000 BTU
  • 9000 BTU + 9000 BTU + 18000 BTU +18000 BTU
  • 9000 BTU + 12000 BTU + 12000 BTU+ 12000 BTU
  • 9000 BTU + 12000 BTU + 12000 BTU+ 18000 BTU
  • 12000 BTU + 12000 BTU + 12000 BTU + 12000 BTU
  • 12000 BTU + 12000 BTU + 12000 BTU + 18000 BTU

5 Units:

  • 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU
  • 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU + 12000 BTU
  • 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU + 18000 BTU
  • 9000 BTU + 9000 BTU + 9000 BTU + 12000 BTU + 12000 BTU
  • 9000 BTU + 9000 BTU + 9000 BTU + 12000 BTU + 18000 BTU
  • 9000 BTU + 9000 BTU + 12000 BTU + 12000 BTU + 12000 BTU
  • 9000 BTU + 12000 BTU + 12000 BTU + 12000 BTU + 12000 BTU
  • 12000 BTU + 12000 BTU + 12000 BTU + 12000 BTU + 12000 BTU

Where

  • 9000 BTU= KFR-23IW/X1c-MIU
  • 12000 BTU=KFR-33IW/X1c-MIU¸ KFR-37CIW/X1c-MIU
  • 18000 BTU=KFR-53IW/X1c-MIU¸ KFR-57CIW/X1c-MIU¸ KFR-50QIW/X1c-MIU

*Each indoor unit can run up 25 meters pipe to outdoor unit (Additional Refrigerant Required)

*Total pipe run can run up to 75 meters (Additional Refrigerant Required)

Outdoor unit Dimension(WxDxH) mm 946x410x810
Packing(WxDxH) mm 1090x500x885
Net/Gross weight kg 74.1/79.5

NOTE: For multi-split type air conditioners, one outdoor unit can be matched to different types of indoor units. All of the
pictures in this manual are for demonstration purposes only. Your air conditioner may be slightly different, if similar in
shape. The following pages introduce several kinds of indoor units that can be matched with the outdoor units.

Operating Conditions
Use the system under the following temperatures for safe and effective operation. If the air conditioner is used under
different conditions, it may malfunction or become less efficient.

Outdoor Model iPAC-42-MOU
Outdoor Code 22022316001325
Power supply V,Hz,Ph 220-240V,1Ph,50Hz
Cooling Capacity Btu/h 42000（10300~42000)
Input W 3810（280~4650)
Rated current A 16（1.4~20.7)
EER W/W 3
Heating Capacity Btu/h 42000（11800~42000)
Input W 3300（650~3800)
Rated current A 14.6（3.0~16.6)
COP W/W 4
Seasonal Cooling Pdesignc kW 12
SEER W/W 6
Energy Efficiency Class A++
Heating(Average ) Pdesignh kW 10
SCOP W/W 4
Energy Efficiency Class A
Tbiv ℃ (7)
Heating(Warmer ) Pdesignh kW 10
SCOP W/W 4.9
Energy Efficiency Class A++
Tbiv ℃ 2
Tol ℃ (15)
Max. input consumption W 4700
Max. input current A 22.0
Compressor Model KTF310D43UMT
Type ROTARY
Brand GMCC
Capacity Btu/h 10010
Input W 2765
Rated current(RLA) A 5
Locked rotor Amp(LRA) A /
Thermal protector position INT01L-4639
Capacitor μF EXTERNAL
Refrigerant oil ml /
Outdoor fan motor New Model VG74/1000
Model ZKFN-120-8-2
Qty 1
Output W 150.0
Capacitor μF /
Speed(Hi/Med/Lo) r/min 2
Outdoor coil Number of rows 3
Tube pitch(a)* row pitch(b) mm 25.4×22
Fin spacing mm 1.3
Fin type Hydrophilic aluminum
Tube outside dia.and type mm Φ9.52,Inner groove tube
Coil length * height * width mm 995x762x22+960x762x22+580x762x22
Number of circuits 4
Outdoor air flow m3/h 3850
Indoor sound power level dB(A) 55
Outdoor  sound pressure level dB(A) 64.0
Outdoor sound power level dB(A) 69.0
Throttle type EXV+Capillary
Outdoor unit Dimension(WxDxH) mm 946x410x810
Packing(WxDxH) mm 1090x500x885
Net/Gross weight kg 74.1/79.5
Refrigerant Type R32
GWP 675
Charged quantity Kg 3
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 5×6.35mm(5×1/4in)/4×9.52mm+1×12.7mm(4×3/8in+1×1/2in)
Max. length for all rooms m 80
Max. length for one indoor unit m 35
Max. height difference between indoor and outdoor unit m 15
Max. height difference between indoor units m 10
Ambient temperature Cooling ℃ -15-50
Heating ℃ -15-24
