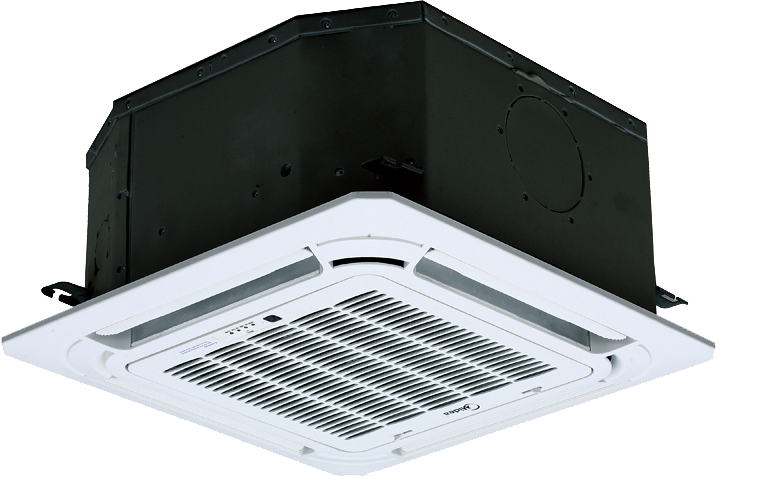

iPAC-30 Ceiling Cassette Indoor 3.5Kw 12000BTU

//iPAC-30 Ceiling Cassette Indoor 3.5Kw 12000BTU

iPAC-30 Ceiling Cassette Indoor 3.5Kw 12000BTU

iPAC-30CC 12000 BTU System

Recommended room size of 25.45 m²

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The KFR23-IW/X1c-MIU is a highly energy efficient, easy to install, multipurpose multi wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.



File:PDF file icon.svg    View Product Datasheet



Mix & Match Units to Create a Perfect Climate Control Solution

Our multi split system air conditioning units consist of one to five indoor units and one outdoor unit, sold separately, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool.

View our Stockists

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Description

Indoor unit Dimension (W  x Dx H)(body) mm 570x570x260
Packing   (W  x Dx H)(body) mm 662x662x317
Dimension (W  x Dx H)(panel) mm 647x647x50
Packing  (W  x Dx H)(panel) mm 715x715x123
Net/Gross weight(body) kg 16.3/20.4
Net/Gross weight kg 2.5/4.5
Indoor  Model iPAC-30CC
Indoor Code 22022511003376
Average Pdesignc kW 3.5
SEER W/W 6.6
Energy Efficiency Class A++
Seasonal space cooling energy efficiency(ηs,c) %
Pdesignh kW 2.7
SCOP W/W 4.1
Energy Efficiency Class A+
Seasonal space heating energy efficiency(ηs,h) %
Tbiv -7
Warmer Pdesignh kW 3.3
SCOP W/W 5.1
Energy Efficiency Class A+++
Tbiv 2
Tol -15
Power supply    (Indoor ) V,Hz,Ph 220-240V,1Ph,50Hz
Power supply    (Outdoor ) V,Hz,Ph 220-240V,1Ph,50Hz
Cooling Capacity Btu/h 12000(2897~14020)
Capacity kW 3.52(0.85~4.11)
Input W 1010(168~1434)
Current A 4.45(1.32~6.31)
Heating Capacity Btu/h 13000(1604~14705)
Capacity kW 3.81(0.47~4.31)
Input W 1019(124~1376)
Current A 4.73(1.04~6.07)
Indoor fan motor Model ZKFP-46-8-1
OldModel WZDK46-38G
Qty 1
Input w 65
Capacitor uF /
Speed(hi/mi/lo) r/min 700/600/500
Indoor coil a.Number of rows 2.0
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 1300x210x26.74+1360x210x26.74
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 569/485/389
Indoor sound pressure level (Hi) dB(A) 42/37.5/34.5/25.5
Indoor sound power level (Hi) dB(A) 56
Outdoor sound pressure level (Hi) dB(A) 53.6
Outdoor sound power level (Hi) dB(A) 60
Indoor unit Dimension (W  x Dx H)(body) mm 570x570x260
Packing   (W  x Dx H)(body) mm 662x662x317
Dimension (W  x Dx H)(panel) mm 647x647x50
Packing  (W  x Dx H)(panel) mm 715x715x123
Net/Gross weight(body) kg 16.3/20.4
Net/Gross weight kg 2.5/4.5
Design pressure MPa 4.3/1.7
Drainage water pipe dia. mm ODΦ25mm
Refrigerant piping Liquid side/ Gas side mm 6.35mm(1/4in)/9.52mm(3/8in)
Controller Standard Remote Control
Operation temperature 16~30
Room temperature Cooling 16~32
Heating 0-30
