iPAC-09WS-IN – Indoor Wall-Split System 2.7Kw – 9000BTU

Recommended room size of 13-22 m²

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The iPAC-09WS-IN is a highly energy efficient, easy to install, multipurpose multi wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling

This Product is Available as an Installed Package

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

File:PDF file icon.svg  View Full Product Datasheet

View our Stockists

Mix & Match Units to Create a Perfect Climate Control Solution

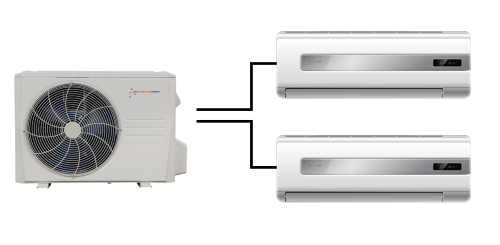

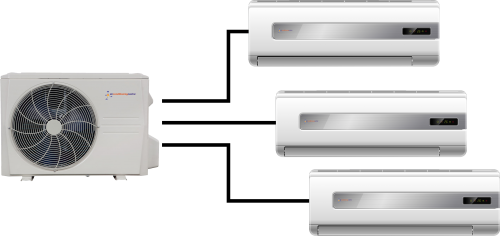

Our multi split system air conditioning units consist of one to five indoor units and one outdoor unit, sold separately, connected via copper piping. The outdoor unit contains the condenser. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.





Description

Indoor unit Dimension(W*D*H) mm 805x194x285
Packing   (W*D*H) mm 870x270x365
Net/Gross weight Kg 7.6/9.7
Indoor code 22022011012298
Indoor iPAC-09WS-IN
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity Btu/h 9000(3100~11600)
Cooling Power input W 732(100~1240)
Cooling  Current A 3.18(0.4~5.4)
Rated Heating Capacity Btu/h 10000(2800~11500)
Heating Power input W 733(120~1200)
Heating Current A 3.18(0.5~5.2)
Seasonal Cooling Pdesignc kW 2.8
SEER W/W 6.3
Energy Efficiency Class A++
Heating(Average ) Pdesignh kW 2.6
SCOP W/W 4.0
Energy Efficiency Class A+
Tbiv -7
Heating(Warmer ) Pdesignh kW 2.6
SCOP W/W 5.1
Energy Efficiency Class A+++
Tbiv 2
Tol -15
Moisture Removal L/h /
Max. input consumption W 2150
Max. current A 10
Starting current A 0000
Compressor Model KSK103D33UEZ3
Type ROTARY
Brand GMCC
Capacity Btu/h 3255
Input W 826
Rated current(RLA) A 6
Locked rotor Amp(LRA) A /
Thermal protector /
Thermal protector position NA
Capacitor uF /
Refrigerant oil/oil charge ml ESTER OIL VG74  310
Indoor fan motor Model YKFG-13-4-38L-4
Output W 40
Capacitor uF 1.2
Speed(Hi/Mi/Lo) r/min 1030 / 900 / 750
Indoor coil a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 19.5×11.6
c.Fin spacing mm 1.2
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф5,Inner groove tube
f.Coil length x height x width mm 595x78x23.2+595x117x23.2+595x78x23.2
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 466/360/325
Indoor sound pressure level  (Hi/Mi/Lo/Si) dB(A) 38.5/32/25/21
Indoor sound power level (Hi) dB(A) 54
Indoor unit Dimension(W*D*H) mm 805x194x285
Packing   (W*D*H) mm 870x270x365
Net/Gross weight Kg 7.6/9.7

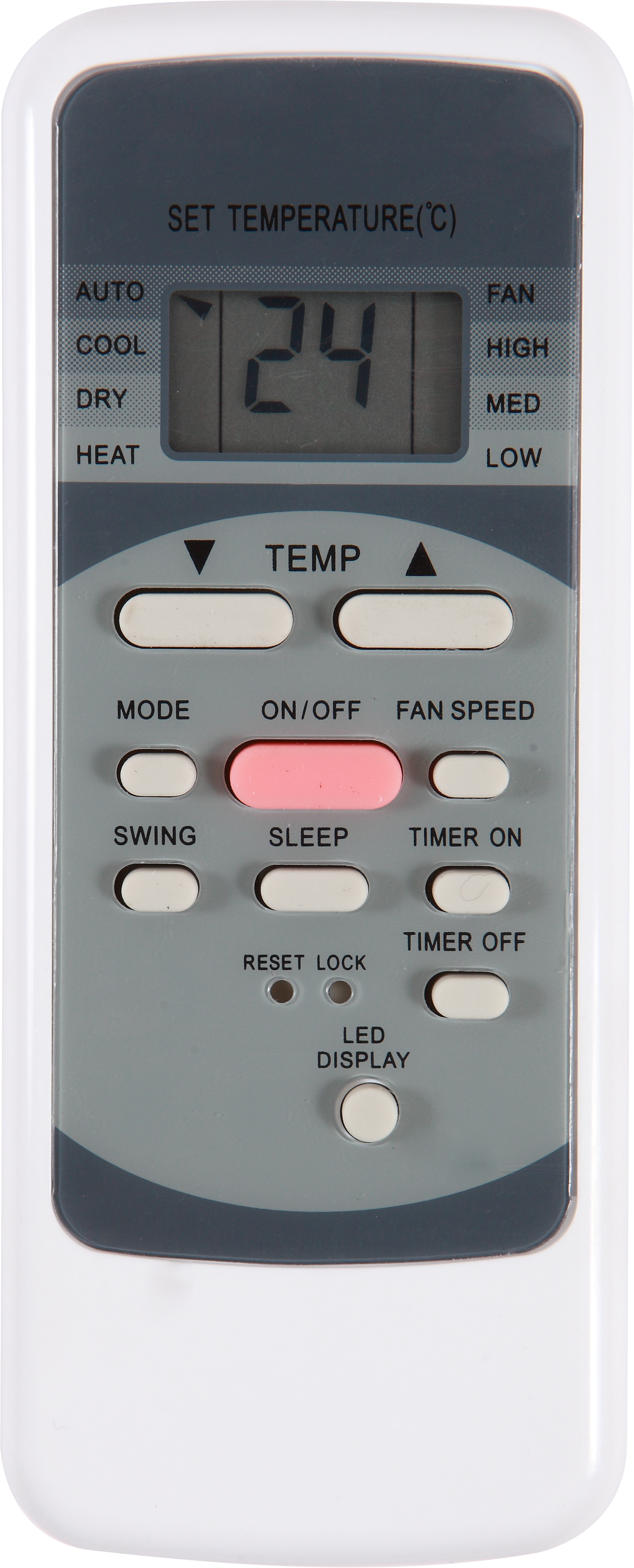

Remote Control (with AAA Batteries)

Wall Mounting Bracket for Remote Control (with screws)

Owner’s Manual

User Manual & Installation Manual

Safety Manual

WiFi USB

WiFi Manual and QR Code Sticker
