iPAC-18-MOU 18000BTU 5Kw 1 Drive 2 INDOOR UNIT

//iPAC-18-MOU 18000BTU 5Kw 1 Drive 2 INDOOR UNIT

iPAC-18-MOU 18000BTU 5Kw 1 Drive 2 INDOOR UNIT

iPAC-18-MOU 5Kw

18000 BTU Total Capacity

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The iPAC-18-MOU is a highly energy efficient, easy to install, multipurpose multi wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Super energy efficient
  • Compact design – one outdoor unit supports up to three indoor units

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

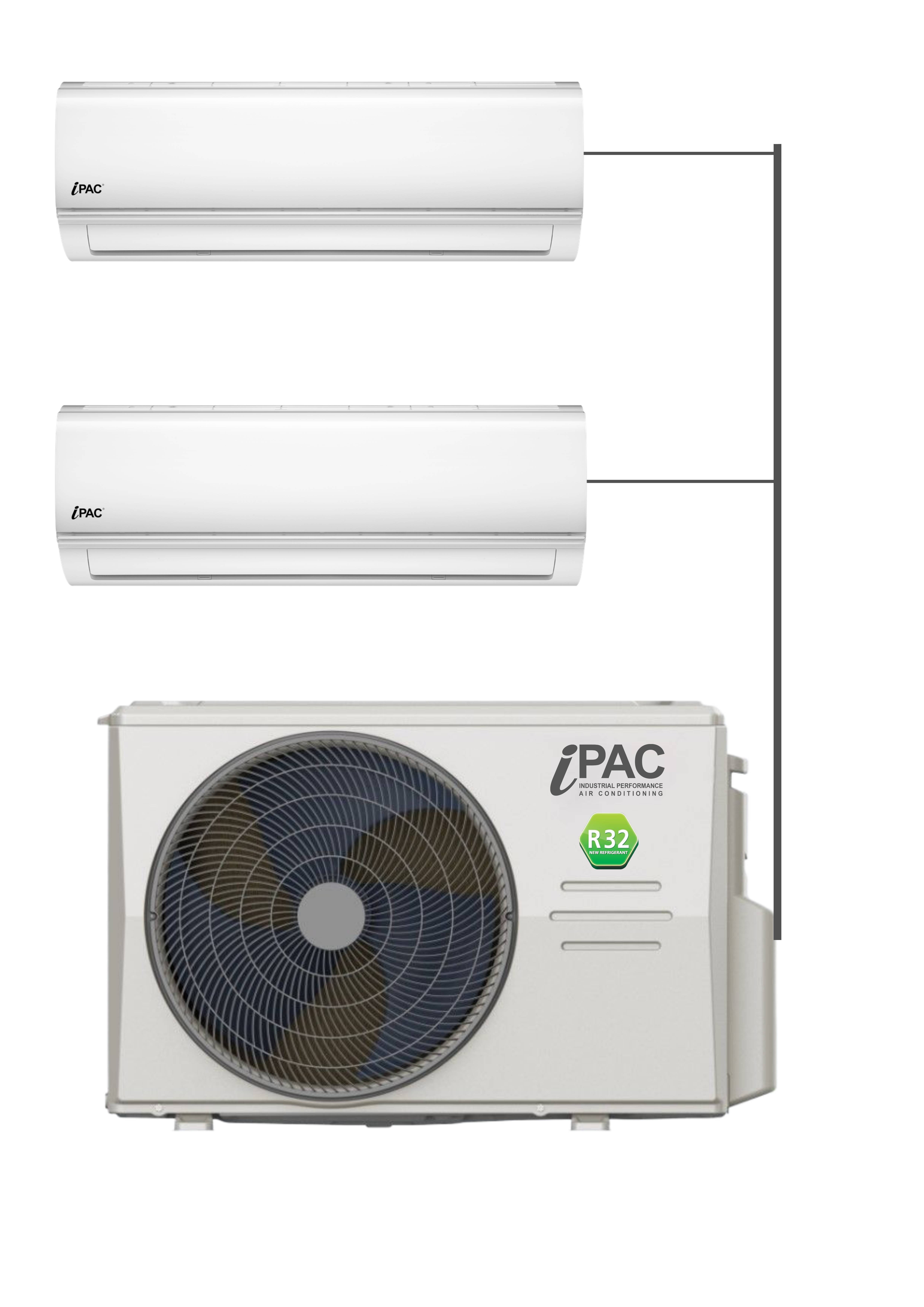

Mix & Match Units to Create a Perfect Climate Control Solution

Our multi split system air conditioning units consist of one to three indoor units, sold separately, all powered by one outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool.

File:PDF file icon.svgView Product Datasheet



View our Stockists

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Category:

Description

Combinations for up to 3 Units

1 Unit:

  • 9000 BTU
  • 12000 BTU
  • 18000 BTU

2 Units:

  • 9000 BTU + 9000 BTU
  • 9000 BTU + 12000 BTU
  • 9000 BTU + 18000 BTU
  • 12000 BTU + 12000 BTU
  • 12000 BTU + 18000 BTU
  • 18000 BTU + 18000 BTU

3 Units:

  • 9000 BTU + 9000 BTU + 9000 BTU
  • 9000 BTU + 9000 BTU + 12000 BTU
  • 9000 BTU + 9000 BTU + 18000 BTU
  • 9000 BTU + 12000 BTU + 12000 BTU
  • 9000 BTU + 12000 BTU + 18000 BTU
  • 12000 BTU + 12000 BTU + 12000 BTU

Where

  • 9000 BTU= KFR-23IW/X1c-MIU
  • 12000 BTU=KFR-33IW/X1c-MIU¸ KFR-37CIW/X1c-MIU
  • 18000 BTU=KFR-53IW/X1c-MIU¸ KFR-57CIW/X1c-MIU¸ KFR-50QIW/X1c-MIU

*Each indoor unit can run up 20 meters pipe to outdoor unit (Additional Refrigerant Required)

*Total pipe run can run up to 45 meters (Additional Refrigerant Required)

Outdoor unit Dimension(WxDxH) mm 805*330*554
Packing(WxDxH) mm 915*370*615
Net/Gross weight kg 35/38

NOTE: For multi-split type air conditioners, one outdoor unit can be matched to different types of indoor units. All of the
pictures in this manual are for demonstration purposes only. Your air conditioner may be slightly different, if similar in
shape. The following pages introduce several kinds of indoor units that can be matched with the outdoor units.

Operating Conditions
Use the system under the following temperatures for safe and effective operation. If the air conditioner is used under
different conditions, it may malfunction or become less efficient.

Outdoor Model iPAC-18-MOU
Outdoor Code 22022316001525
Power supply V,Hz,Ph 220-240V,1Ph,50Hz
Cooling Capacity Btu/h 18000（7800~19500)
Input W 1635（690~2000)
Rated current A 7.3（3.2~9.0)
EER W/W 3.23
Heating Capacity Btu/h 19000（8200~19600)
Input W 1500（600~1780)
Rated current A 6.6（2.80~7.95)
COP W/W 3.71
Seasonal Cooling Pdesignc kW 5.3
SEER W/W 6.1
Energy Efficiency Class A++
Heating(Average ) Pdesignh kW 4.8
SCOP W/W 3.8
Energy Efficiency Class A
Tbiv ℃ -7
Heating(Warmer ) Pdesignh kW 5.0
SCOP W/W 5.1
Energy Efficiency Class A+++
Tbiv ℃ 2
Tol ℃ -15
Max. input consumption W 3050
Max. input current A 13
Compressor Model KSN140D58UFZ
Type ROTARY
Brand GMCC
Capacity Btu/h 4315
Input W 1090
Rated current(RLA) A 7.15
Locked rotor Amp(LRA) A —-
Thermal protector position —-
Capacitor μF —-
Refrigerant oil ml VG74 440
Outdoor fan motor New Model ZKFN-34-10-1-3
Model —-
Qty 1
Output W 47
Capacitor μF —-
Speed(Hi/Med/Lo) r/min 760/700/500
Outdoor coil Number of rows 2
Tube pitch(a)* row pitch(b) mm 21×22
Fin spacing mm 1.3
Fin type Hydrophilic aluminium(Golden)
Tube outside dia.and type mm Φ7,innergroove tube
Coil length * height * width mm 860*504*44
Number of circuits 4
Outdoor air flow m3/h 2100
Indoor sound power level dB(A) 54
Outdoor  sound pressure level dB(A) 54
Outdoor sound power level dB(A) 65
Throttle type EXV+Capillary
Outdoor unit Dimension(WxDxH) mm 805*330*554
Packing(WxDxH) mm 915*370*615
Net/Gross weight kg 35/38
Refrigerant Type R32
GWP 675
Charged quantity Kg 1.25
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 2×6.35mm(2×1/4in)/2×9.52mm(2×3/8in)
Max. length for all rooms m 40
Max. length for one indoor unit m 25
Max. height difference between indoor and outdoor unit m 15
Max. height difference between indoor units m 10
Ambient temperature Cooling ℃ -15-50
Heating ℃ -15-24
