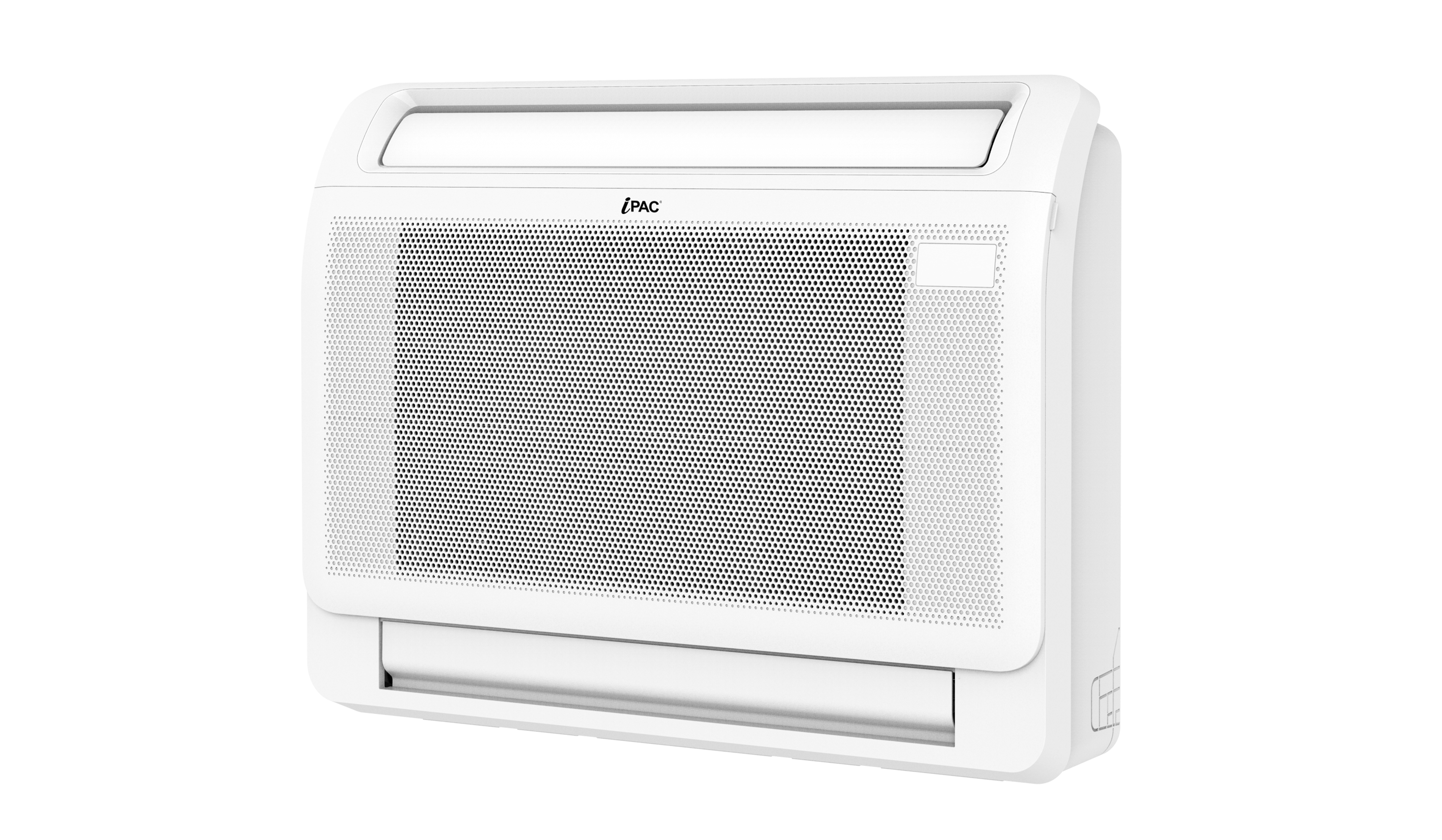

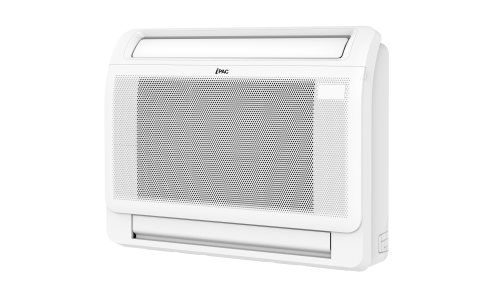

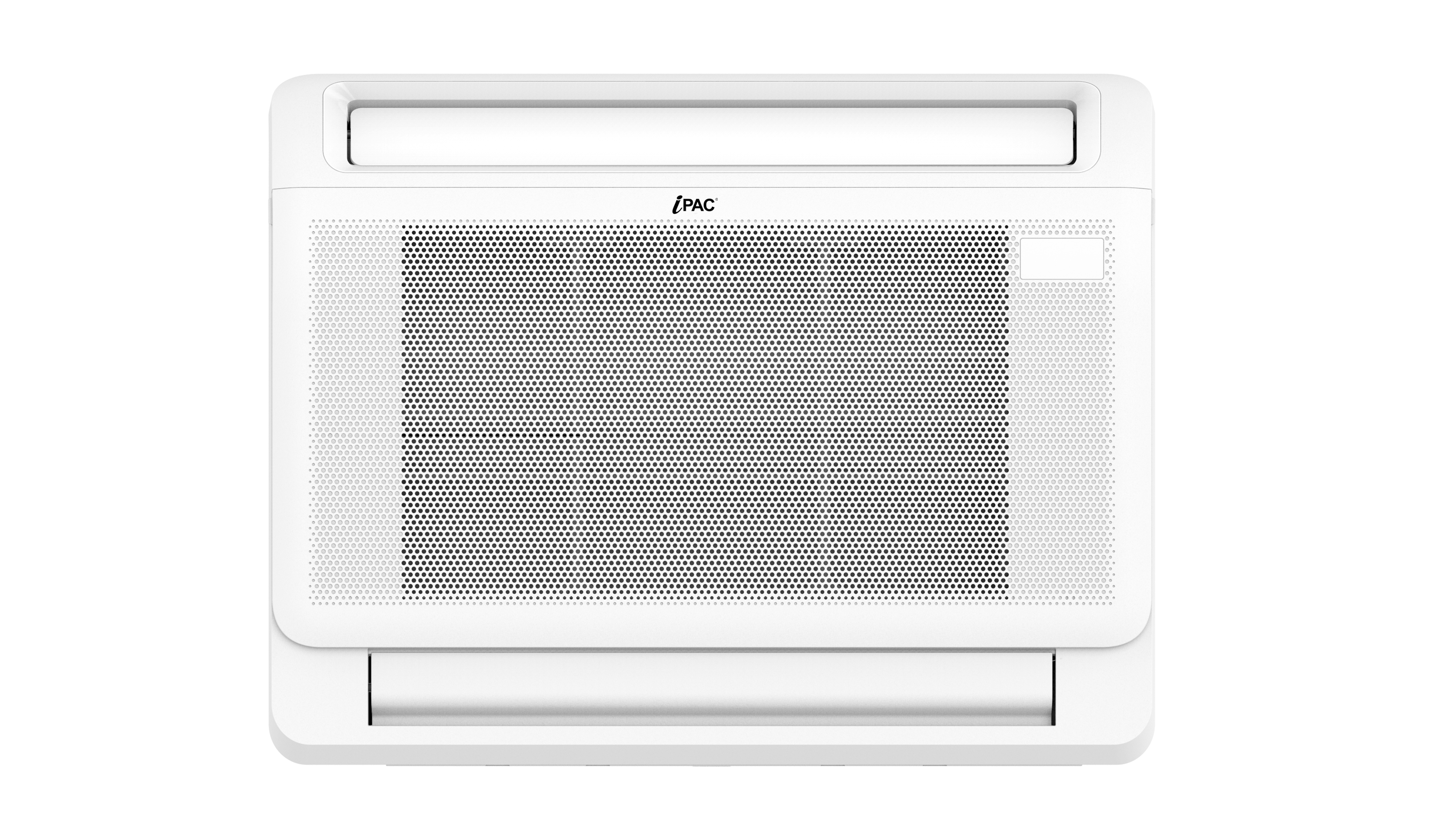

iPAC-18CS-IN Console Split Indoor Unit 4.9Kw 17000BTU

//iPAC-18CS-IN Console Split Indoor Unit 4.9Kw 17000BTU

iPAC-18CS-IN Console Split Indoor Unit 4.9Kw 17000BTU

iPAC-18CS-IN Console Indoor Unit 4.9Kw 17000BTU

Recommended room size of 24-35 m²
Our indoor console wall split air conditioning units are perfect for both residential and commercial use. The iPAC-18CS-IN is a highly energy efficient, multipurpose single split console unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter. Please note this is the indoor unit only and will need to be combined with an outdoor split system unit.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling
  • WIFI Not Included

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Our multi-indoor units consist of an indoor evaporator only. A multi-outdoor system would be required for this.

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

File:PDF file icon.svg  View Full Product Datasheet

View our Stockists

Description

Indoor unit Dimension(W*D*H) mm 794 x 200 x 621
Packing   (W*D*H) mm 865 x 280 x 719
Net/Gross weight Kg 14.9 / 18.8

INDOOR UNIT

Model iPAC-18CS
Indoor iPAC-18CS Indoor Unit
Average Pdesignc kW 5.0
SEER W/W 6.7
Energy Efficiency Class A++
Pdesignh kW 4.0
SCOP W/W 4.0
Energy Efficiency Class A+
Tbiv -7
Warmer Pdesignh kW 5.0
SCOP W/W 5.0
Energy Efficiency Class A++
Tbiv 2
Tol -15
Power supply    (Indoor ) V,Hz,Ph 220-240V,1Ph,50Hz
Power supply    (Outdoor ) V,Hz,Ph 220-240V,1Ph,50Hz
Cooling Capacity Btu/h 17000(9000~19000)
Capacity kW 4.98(2.64~5.57)
Input W 1500(650~1950)
Current A 6.70(2.95~8.70)
Heating Capacity Btu/h 18000(7500~21500)
Capacity kW 5.28(2.20~6.30)
Input W 1420(600~1900)
current A 6.40(2.75~8.50)
Indoor fan motor Model ZKFP-13-8-136
ZKFP-13-8-104
Old Model /
Qty 2
Input W 26*2
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1100/1000/900
Indoor coil a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 550x378x26.74
g.Number of circuits 2
Indoor air flow (Hi/Mi/Lo) m3/h 780/690/600
Indoor sound pressure level(Hi/Mi/Lo/Si) dB(A) 41/38/32/26
Indoor sound power level (Hi) dB(A) 55
Outdoor sound pressure level dB(A) 55
Outdoor sound power level (Hi) dB(A) 63
Indoor unit Dimension(W*D*H) mm 794x200x621
Packing   (W*D*H) mm 865x280x719
Net/Gross weight Kg 14.9/18.8
Design pressure MPa 4.3/1.7
Drainage water pipe dia. mm ODΦ16mm
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Controller Remote Control
Operation temperature 16~30
Room  temperature Cooling 16~32
Heating 0~30
