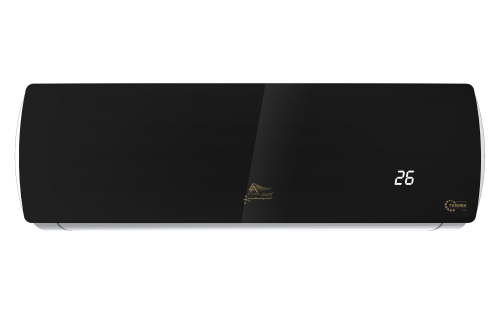

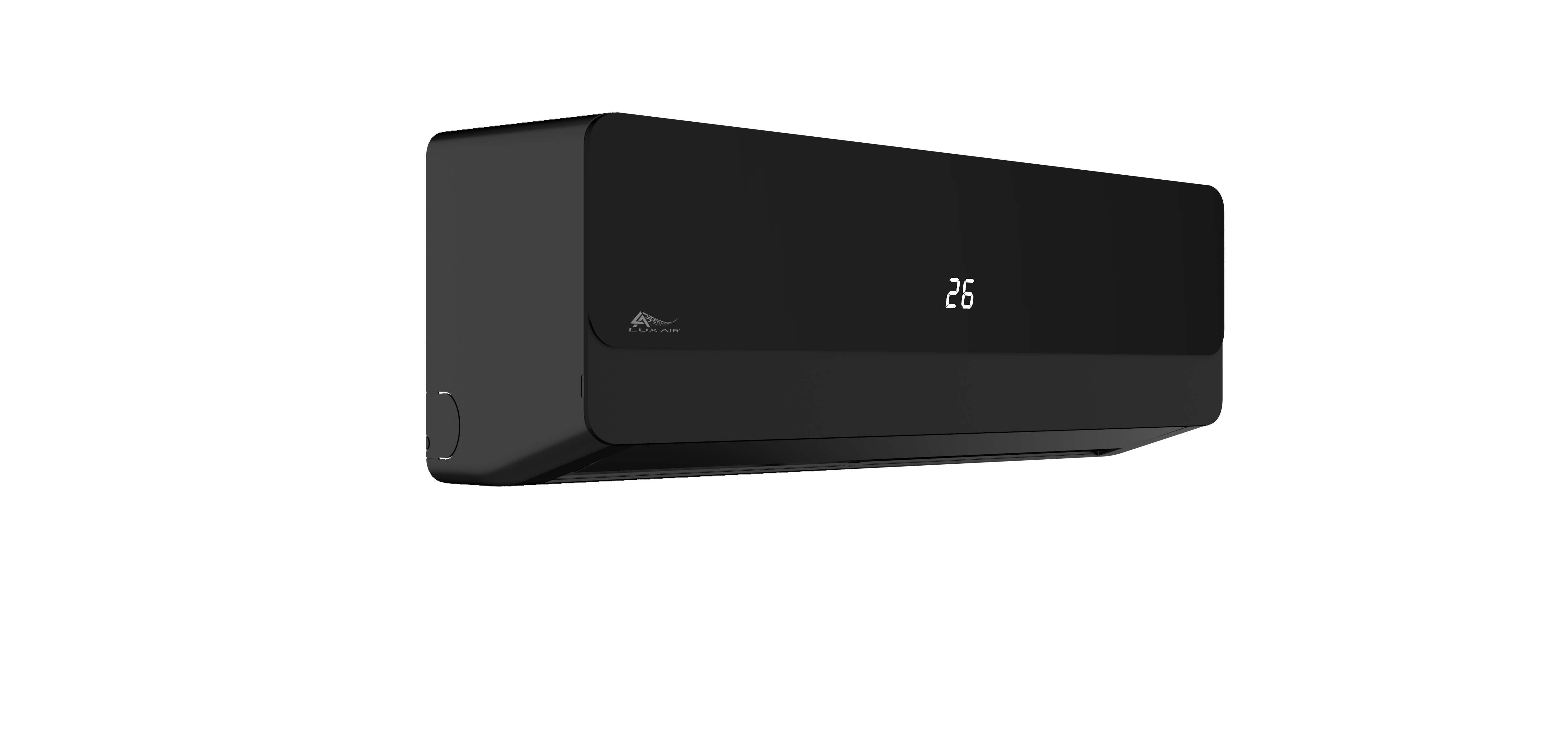

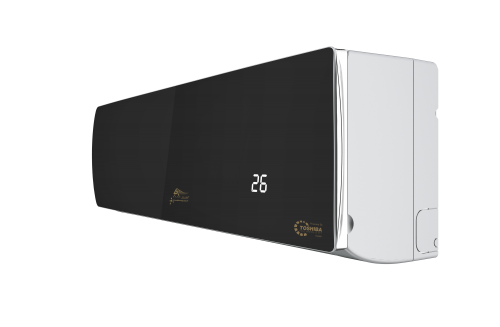

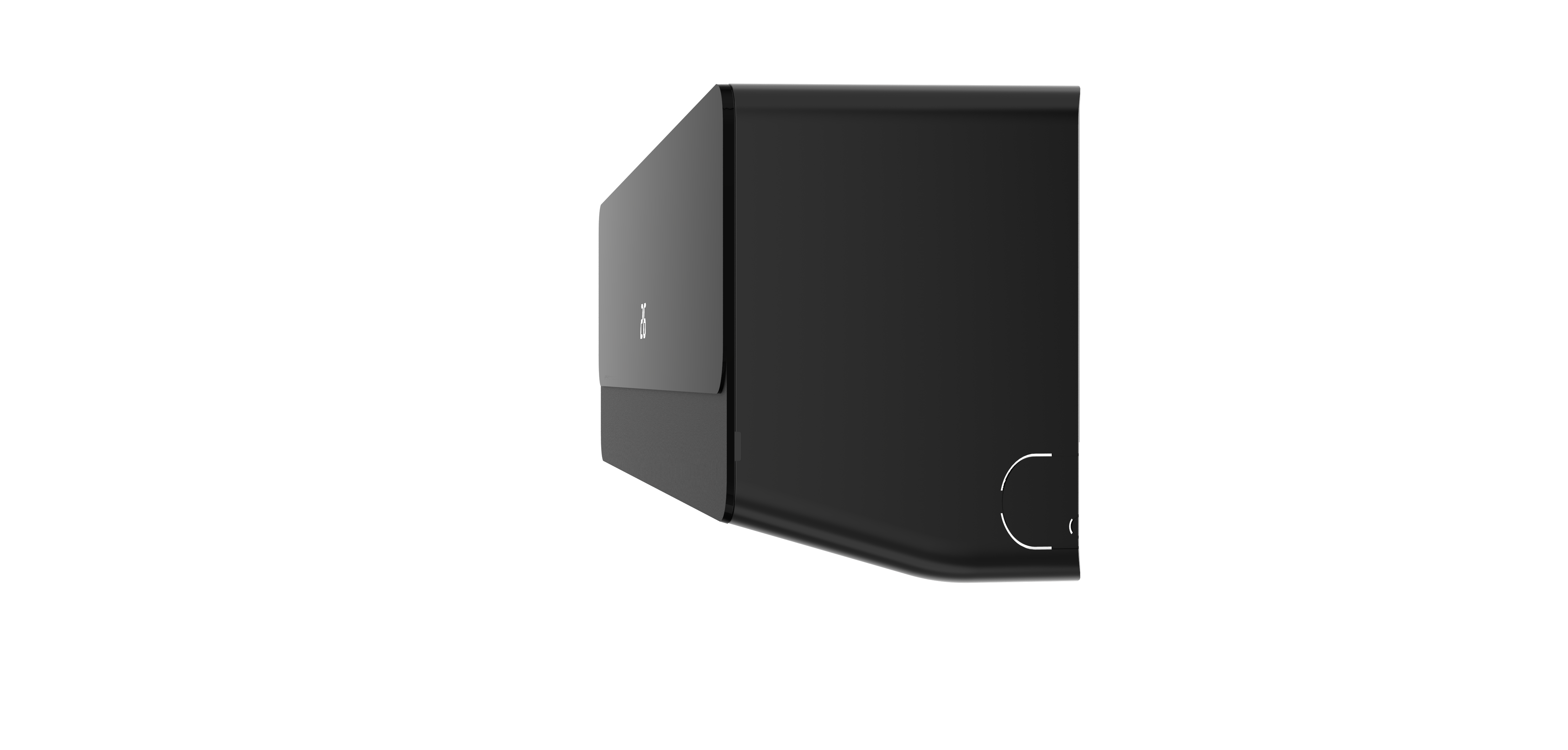

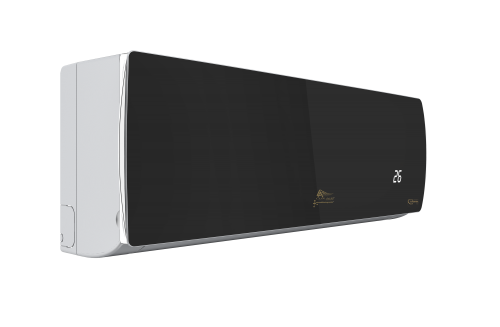

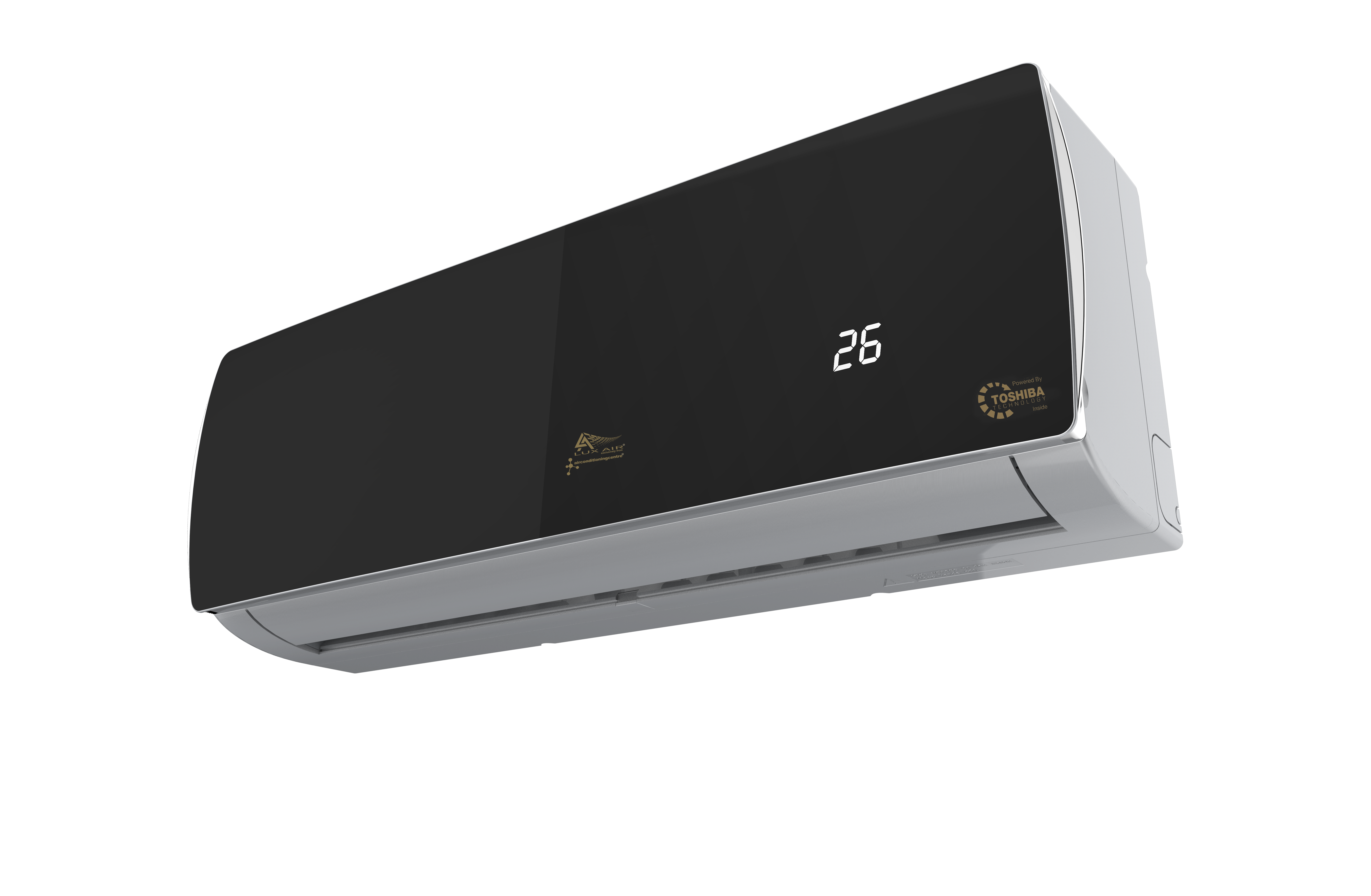

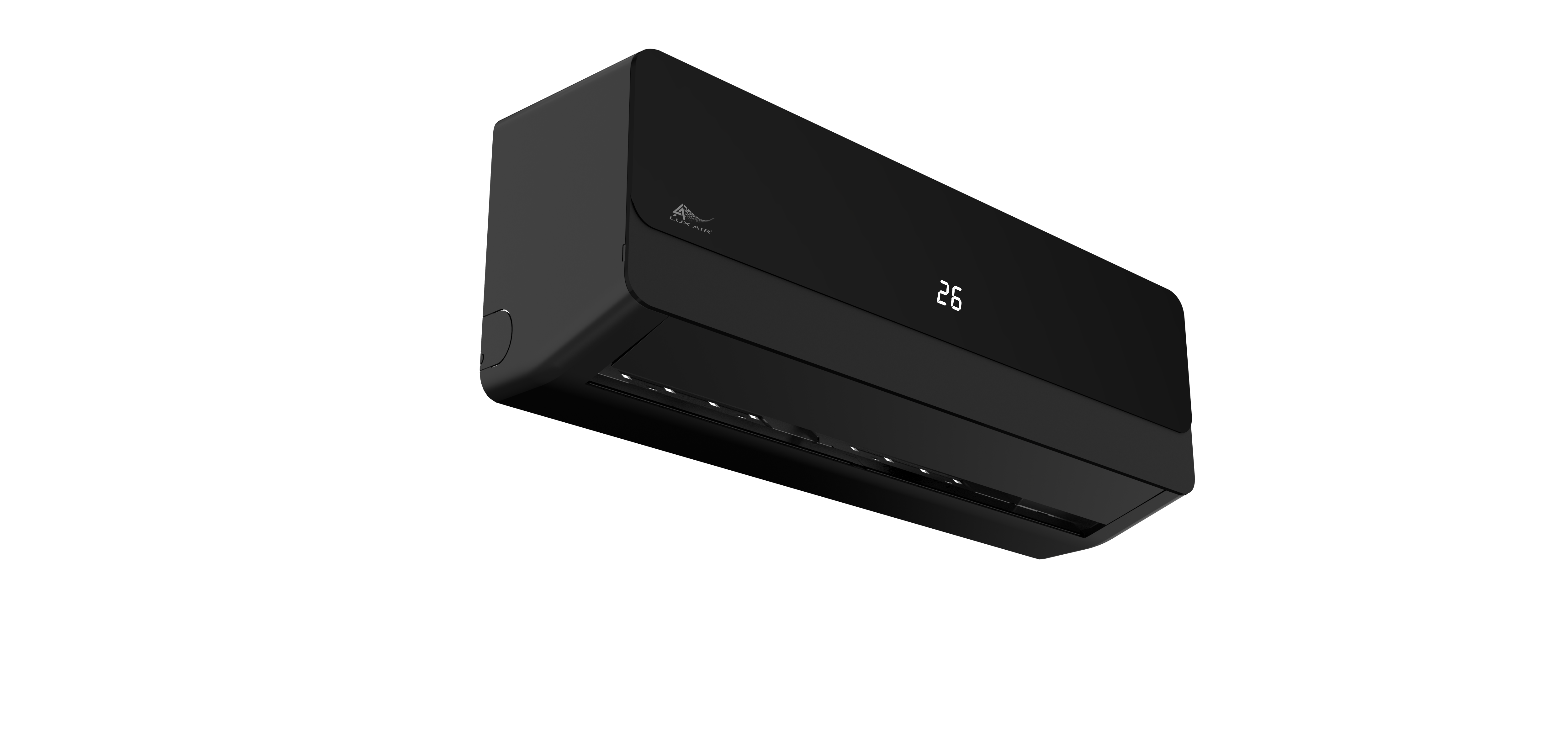

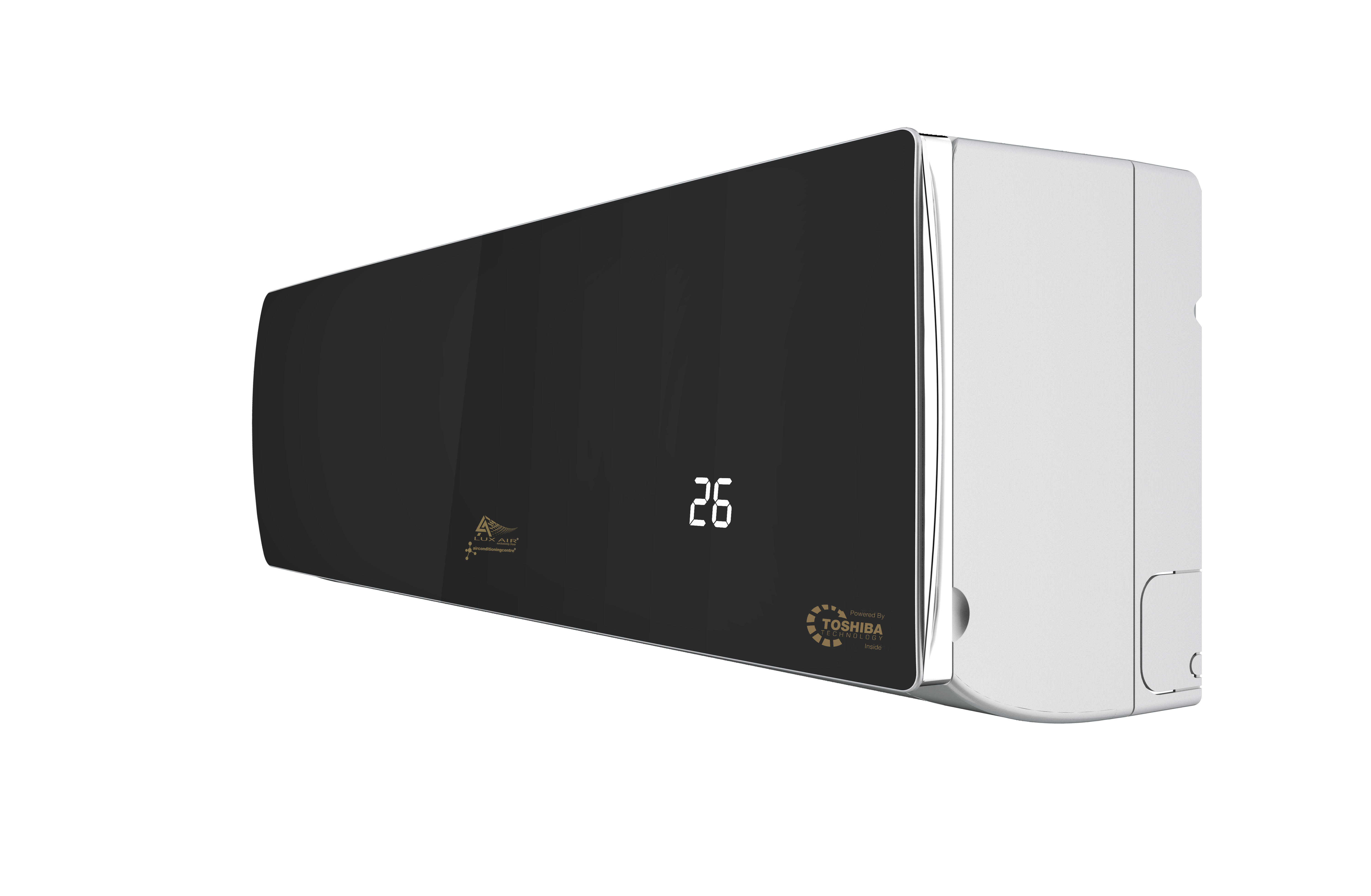

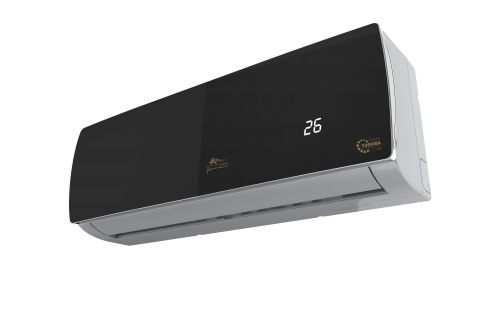

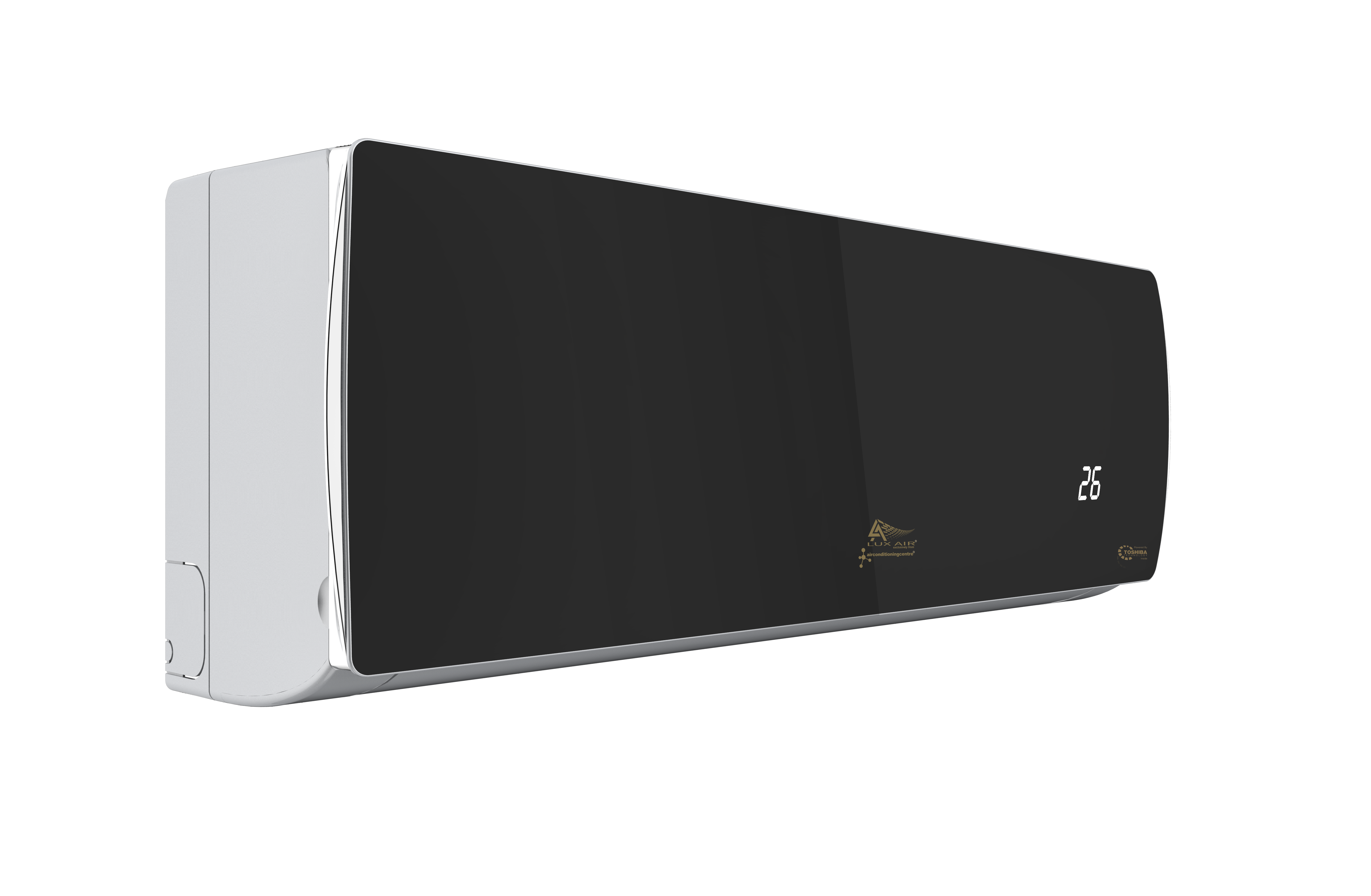

KFR-26YW/LUX

KFR-26YW/LUX

LUX AIR – Air Conditioning with the ability to sanitize and clean the air in a room with the same system that delivers cool air only seams logical. Our split air conditioning units are perfect for both residential and commercial use. The KFR-26YW/LUX is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • UV-C lamp
  • 3 in 1 Filter (Vitamin C, Silver Ion, and Anti-Virus filters)
  • 4D air flow
  • Integrated built-in Wi-Fi
  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling
  • Voice-controllable with Alexa and Google home
  • New refrigerant (R32) non o-zone depleting

This Product is Available as an Installed Package

5 year warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

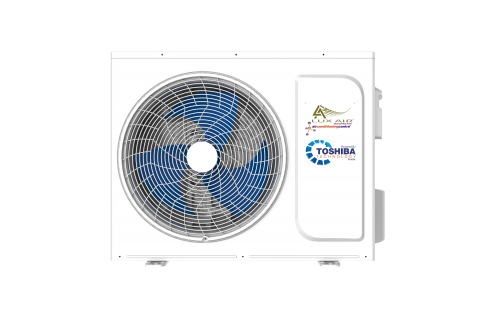

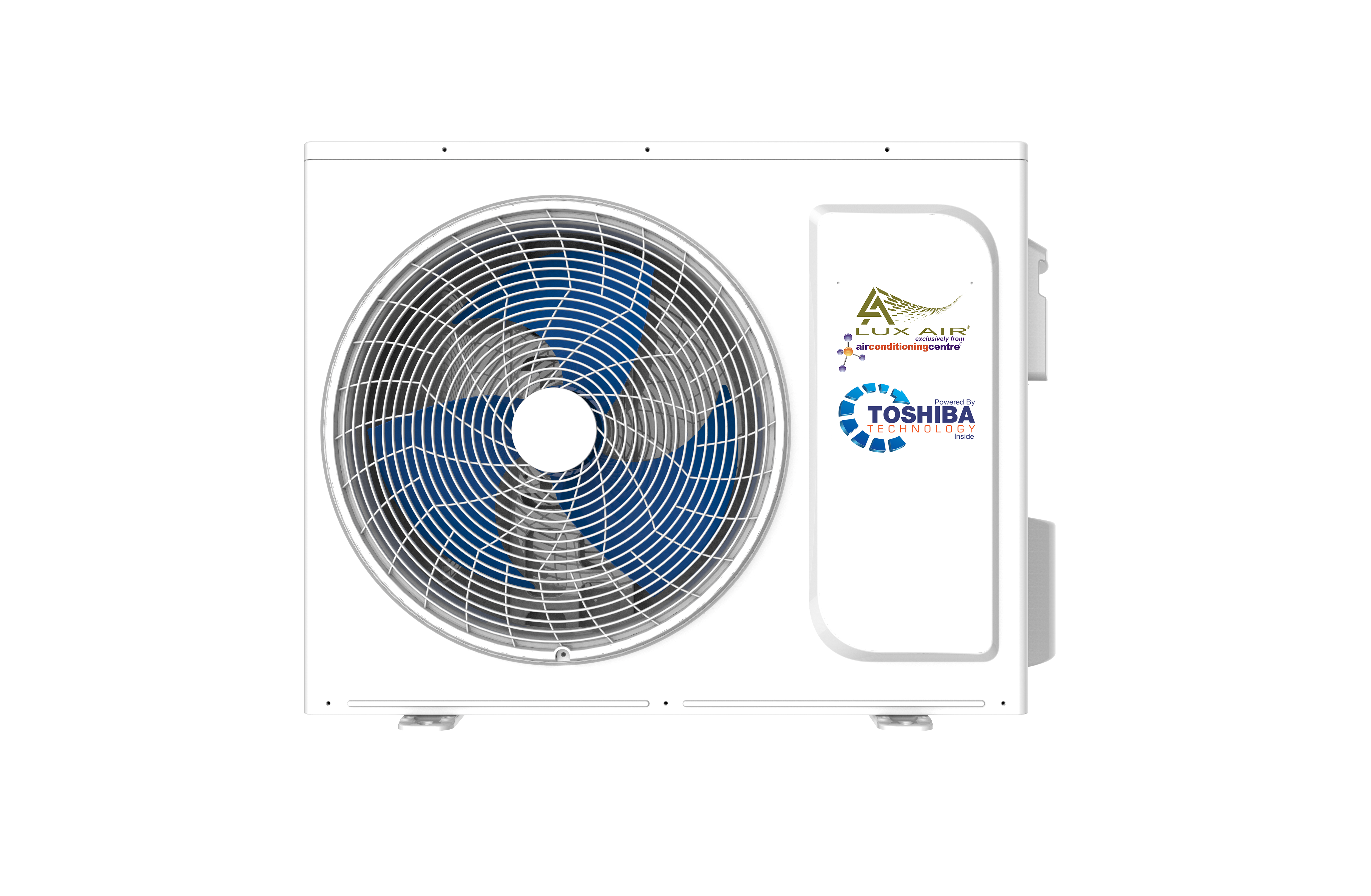

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

A Setup Guide To Your WiFi, Alexa & Google Home



View Full Product Datasheet

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Click Here for your Nearest Dealer.

Description

Model No KFR-26YW/LUX
Barcode indoor 225121026091
Bacode outdoor 225121026092
Refrigerant Type R32
WIFI APP – Alexa and Google Speech Controllable Yes
Energy Efficiency Rating Cooling A++
Energy Efficiency Rating Heating A+++
Power Rating (Ph-V-Hz) 1/220-240V/50Hz
Capacity BTU/h (Cooling) Kw (Max Kw) 9000 / 2.7 (2.8)
Capacity BTU/h (Heating) Kw (Max Kw) 9000 / 2.7 (2.9)
Power Input (W) Cooling~Heating (Max Kw) 750~680 (1.3)
Current Input (A) Cooling~Heating 3.5~3.1
EER/SEER (BTU/hr.W) SEER 6.1
COP/SCOP (W/W)  SCOP 4.0
Dehumidification L/h 0.9
Indoor Noise Level SPL dB (A) (Max) 34~40
Outdoor Noise Level SPL dB (A) (Max) 52
Indoor Airflow (m3/h) 350/400/450/500
Max. Current Rating (A) Fuse Rating (Type D) 7
Net Dimension (mm) Indoor (WxDxH) 720x270x196
Unit Dimension (mm) Outdoor (WxDxH) 665x260x530
Net Weight Indoor (Kg) 7.5
Net Weight Outdoor (Kg) 21.8
Max Room Size (m2) 13-25
Max Conservatory Size (m2) 12
Connecting Pipe Length (m) 4
Pipe Diameter Liquid/Gas (Inch) 1/4″ & 3/8″
Selectable Temp Range °C 16-32
Min/Max Operating Temp (Cooling/Heating) °C -15 ~ 52
Automatic Restart after Power Failure Yes
Automatic Refrigerant Leak Detection & Self Diagnosis Systems Yes
Indoor Model size (mm) 720x270x196
Indoor Packaging Size (mm) 800x330x265
Indoor Gross Weight (kg) 9
Indoor Nett Weight (kg) 7.5
Outdoor Model size (mm) 665x260x530
Outdoor Gross Size (mm) 785x340x600
Outdoor Gross Weight (kg) 25.1
Outdoor Nett Weight 21.8



• WiFi APP controllable (perfect for Building Management)

• Alexa & Google controllable

• 4M Pipe included
