iPAC-50CC 5Kw Ceiling Cassette – 18000 BTU

//iPAC-50CC 5Kw Ceiling Cassette – 18000 BTU

iPAC-50CC 5Kw Ceiling Cassette – 18000 BTU

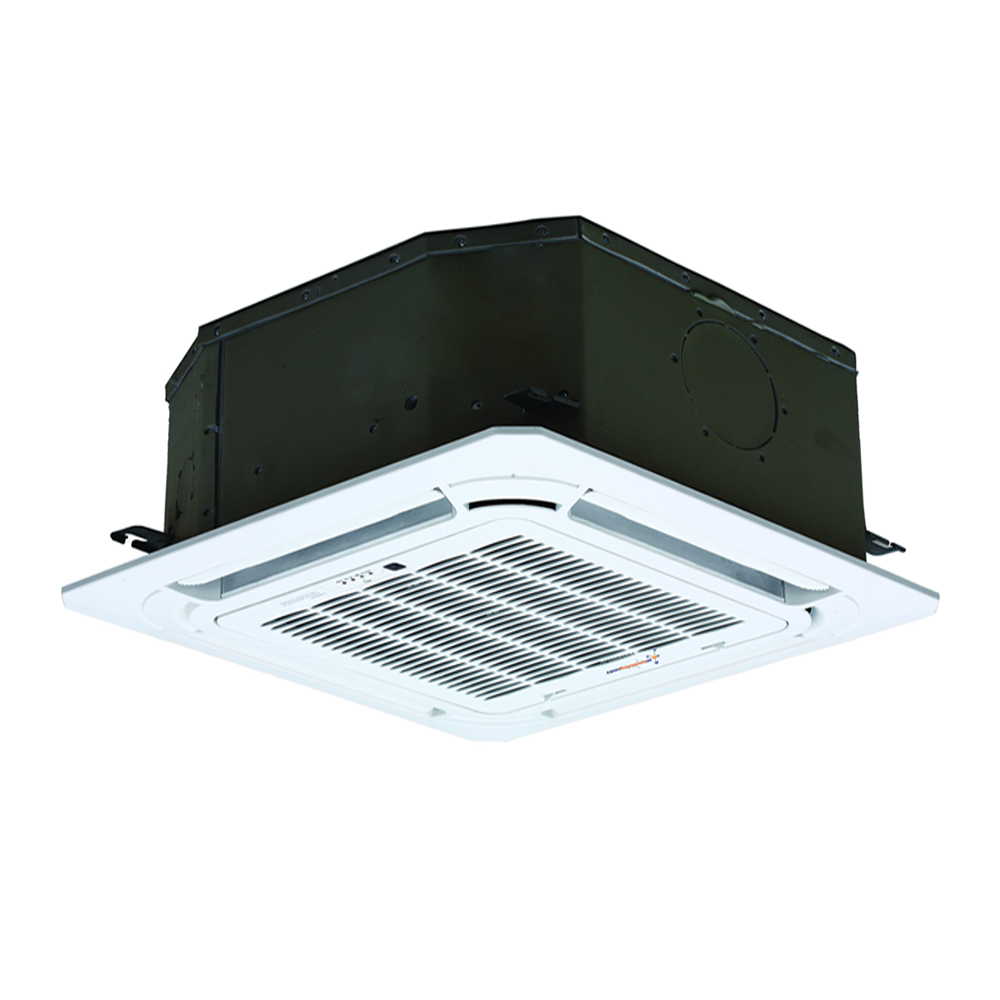

iPAC-50CC Ceiling Cassette 5Kw- 18000 BTU System

Recommended room size of 25-45 m²

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The KFR-50QIW/X1C is a highly energy efficient, easy to install, multipurpose super inverter ceiling cassette unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Highly Efficient – Simple to install

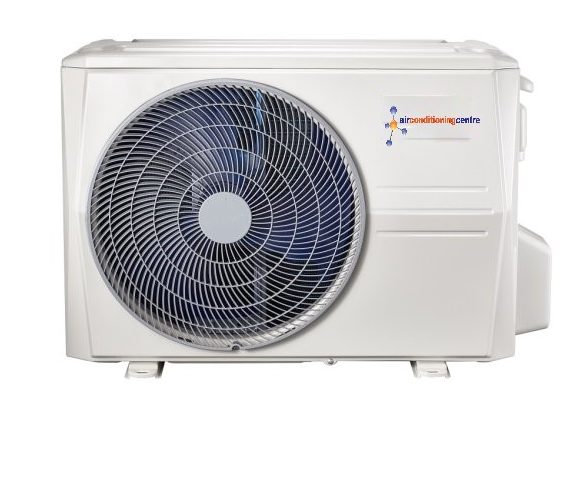

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.



File:PDF file icon.svg   View Full Product Datasheet

View our Stockists

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Category:

Description

INDOOR UNIT

Indoor unit Dimension (W  x Dx H)(body) mm 570x570x260
Packing   (W  x Dx H)(body) mm 662x662x317
Dimension (W  x Dx H)(panel) mm 647x647x50
Packing  (W  x Dx H)(panel) mm 715x715x123
Net/Gross weight(body) kg 16/20.6
Net/Gross weight kg 2.5/4.5

OUTDOOR UNIT

Outdoor unit Dimension(W*D*H) mm 805x330x554
Packing  (W*D*H) mm 915x370x615
Net/Gross weight Kg 32.5/35.2

INDOOR UNIT

Indoor  Model iPAC-50CC
Indoor Code 22022511003356
Average Pdesignc kW 5.3
SEER W/W 6.3
Energy Efficiency Class A++
Seasonal space cooling energy efficiency（ηs,c） % ―
Pdesignh kW 4.2
SCOP W/W 4.0
Energy Efficiency Class A+
Seasonal space heating energy efficiency（ηs,h） % ―
Tbiv ℃ -7
Warmer Pdesignh kW 5.4
SCOP W/W 4.8
Energy Efficiency Class A++
Tbiv ℃ 2
Tol ℃ -15
Power supply    (Indoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Power supply    (Outdoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Cooling Capacity Btu/h 18000（9900~19064)
Capacity kW 5.28（2.90~5.59）
Input W 1633（720~2088)
Current A 7.2（3.2~9.2)
Heating Capacity Btu/h 19000（8100~20800)
Capacity kW 5.57（2.37~6.10）
Input W 1540（700~1930)
Current A 6.8（3.1~8.5)
Indoor fan motor Model ZKFP-46-8-1
OldModel WZDK46-38G
Qty 1
Input w 65
Capacitor uF /
Speed(hi/mi/lo) r/min 752/664/576
Indoor coil a.Number of rows 2.0
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 1360x210x26.74
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 680/584/479
Indoor sound pressure level (Hi) dB(A) 45.4/44/39/29
Indoor sound power level (Hi) dB(A) 57
Outdoor sound pressure level (Hi) dB(A) 59
Outdoor sound power level (Hi) dB(A) 63
Indoor unit Dimension (W  x Dx H)(body) mm 570x570x260
Packing   (W  x Dx H)(body) mm 662x662x317
Dimension (W  x Dx H)(panel) mm 647x647x50
Packing  (W  x Dx H)(panel) mm 715x715x123
Net/Gross weight(body) kg 16/20.6
Net/Gross weight kg 2.5/4.5
Design pressure MPa 4.3/1.7
Drainage water pipe dia. mm ODΦ25mm
Refrigerant piping Liquid side/ Gas side mm 6.35mm(1/4in)/12.7mm(1/2in)
Controller Standard Remote Control
Operation temperature ℃ 16~30
Room temperature Cooling ℃ 16～32
Heating ℃ 0-30
Qty’per 20’ /40’ /40’HQ Indoor unit 186/375/429

OUTDOOR UNIT

Model iPAC-18CS/50CC-ODU
Code 22022516001742
Power supply V,Hz,Ph 220-240V,1Ph，50Hz
Max. input consumption W 2950
Max. current A 13.5
Compressor Model KSN140D21UFZ
Type ROTARY
Brand GMCC
Capacity W 4385
Input W 1140
Rated current(RLA) A 7.50
Refrigerant oil/oil charge ml VG74/440
Outdoor fan motor Model ZKFN-34-10-1
Old Model ZKFN-34-10-1
Qty 1
Input W 49.5
Capacitor uF 0
Speed r/min 760/650
Outdoor coil a.Number of rows 2.0
b.Tube pitch(a)x row pitch(b) mm 21×22
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф7,Inner groove tube
f.Coil length x height x width mm 860*504*44
g.Number of circuits 4
Outdoor air flow 2100
Throttle type EXV
Outdoor unit Dimension(W*D*H) mm 805x330x554
Packing  (W*D*H) mm 915x370x615
Net/Gross weight Kg 32.5/35.2
Refrigerant type Type R32
GWP 675
Kg 1.15
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length m 30
Max. difference in level m 20
Ambient temperature Cooling ℃ -15～50
Heating ℃ -20～24
