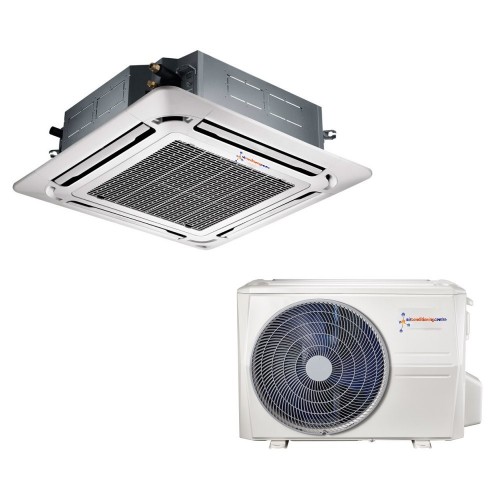

iPAC-74CC 7Kw Ceiling Cassette – 24000 BTU

//iPAC-74CC 7Kw Ceiling Cassette – 24000 BTU

iPAC-74CC 7Kw Ceiling Cassette – 24000 BTU

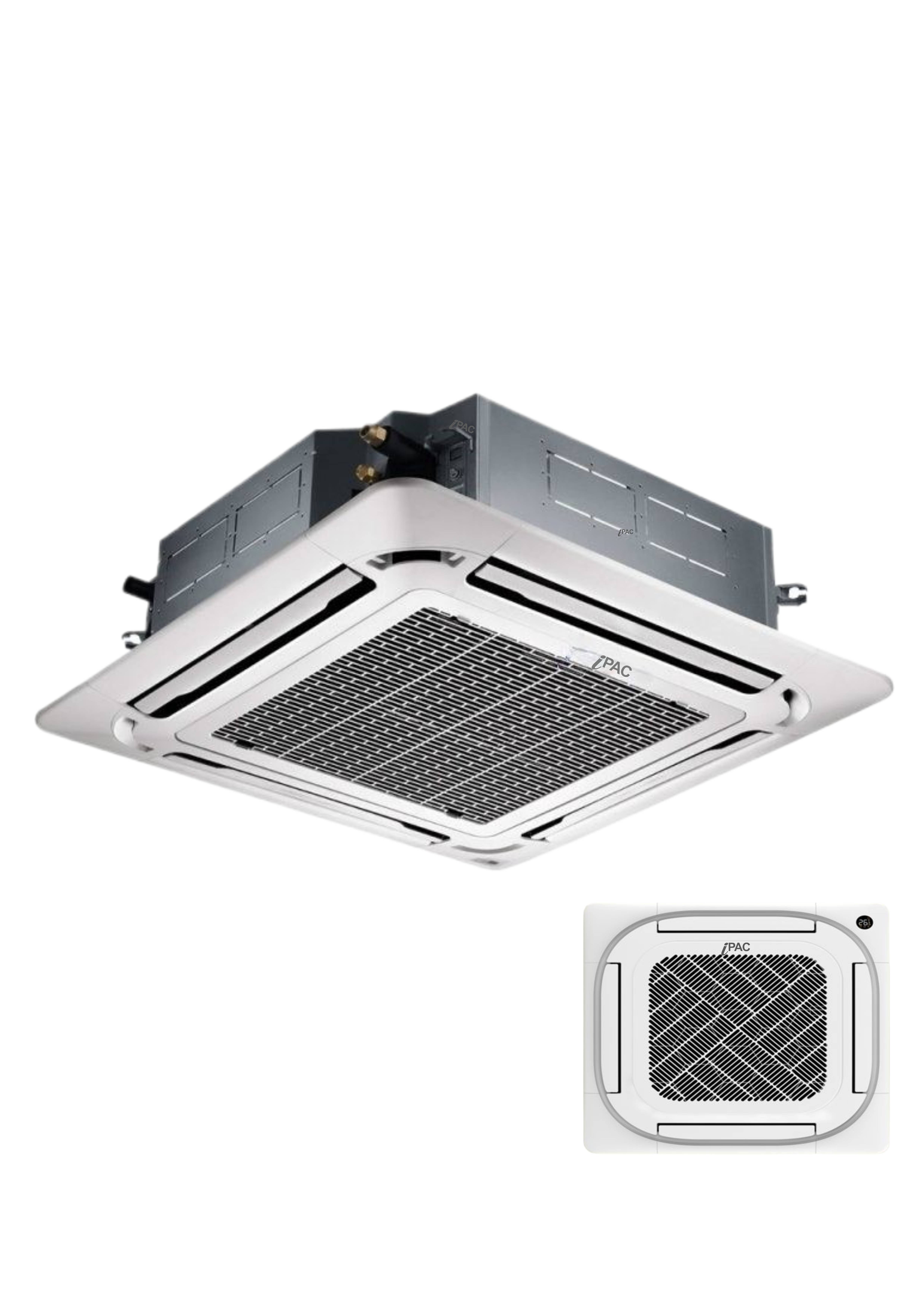

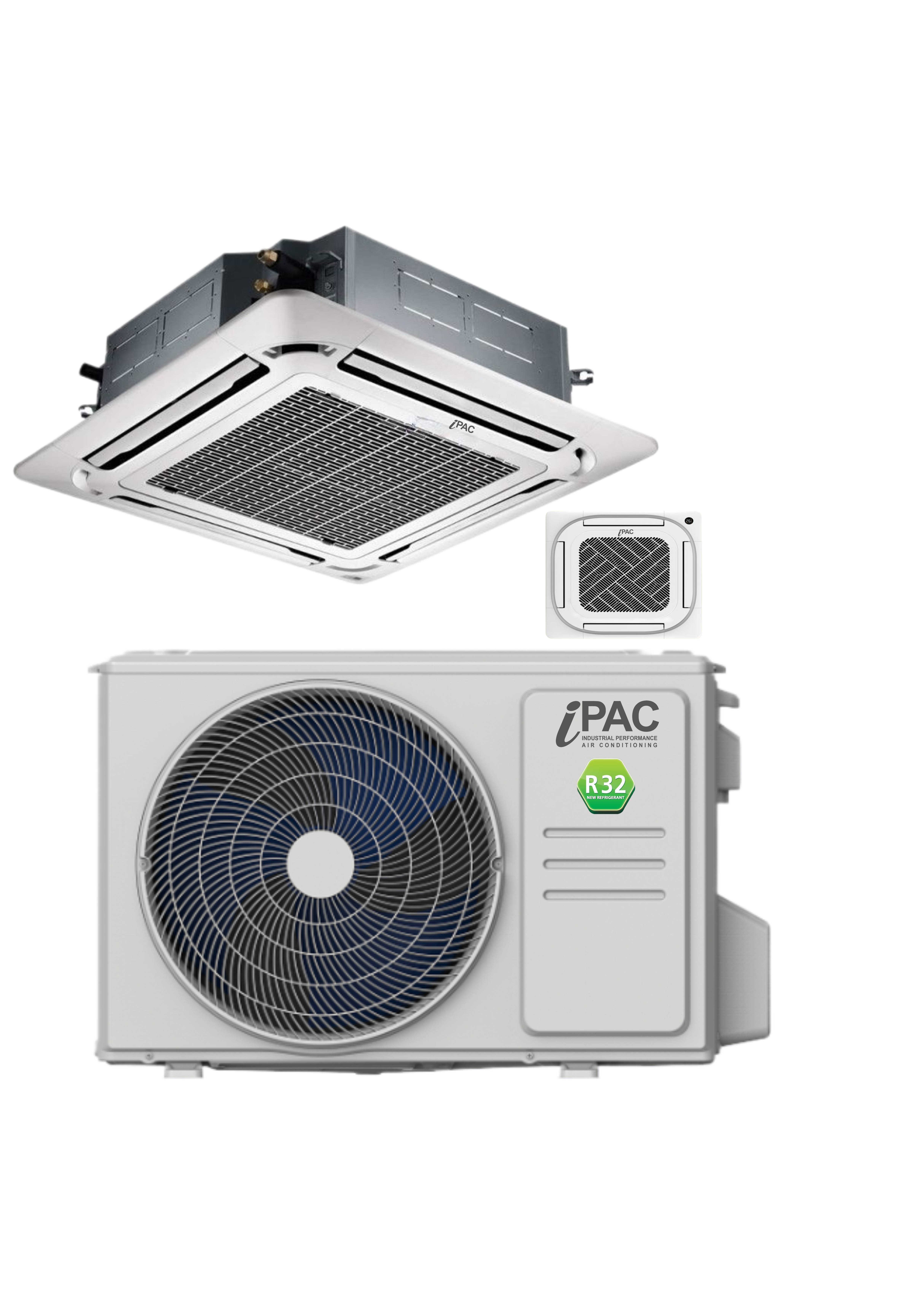

iPAC-74CC Ceiling Cassette System 7Kw – 24000 BTU

Recommended room size of 34-60 m²

Our EASYfit split air conditioning units are perfect for both residential and commercial use. The iPAC-74CC  is a highly energy efficient, easy to install, multipurpose super inverter ceiling cassette unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • Timer feature to turn the unit on and off automatically
  • Air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display
  • Heat pump model provides heating as well as cooling

 Warranty

1. Installed by F-Gas registered installer.

2. Systems must be serviced by F-Gas registered installer.

3. Warranty + Services must be registered with Air Conditioning Centre.

Highly Efficient – Simple to install

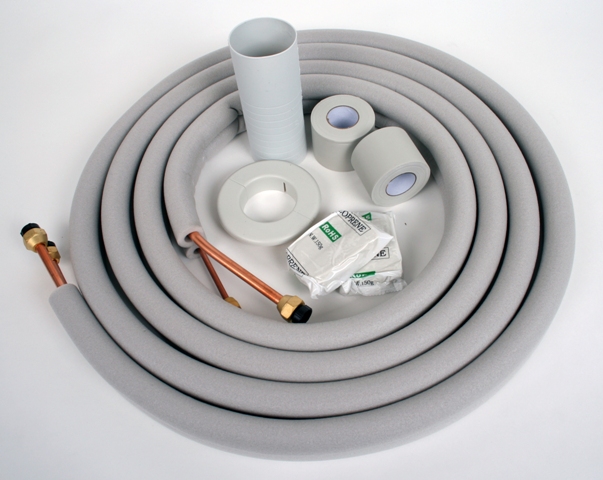

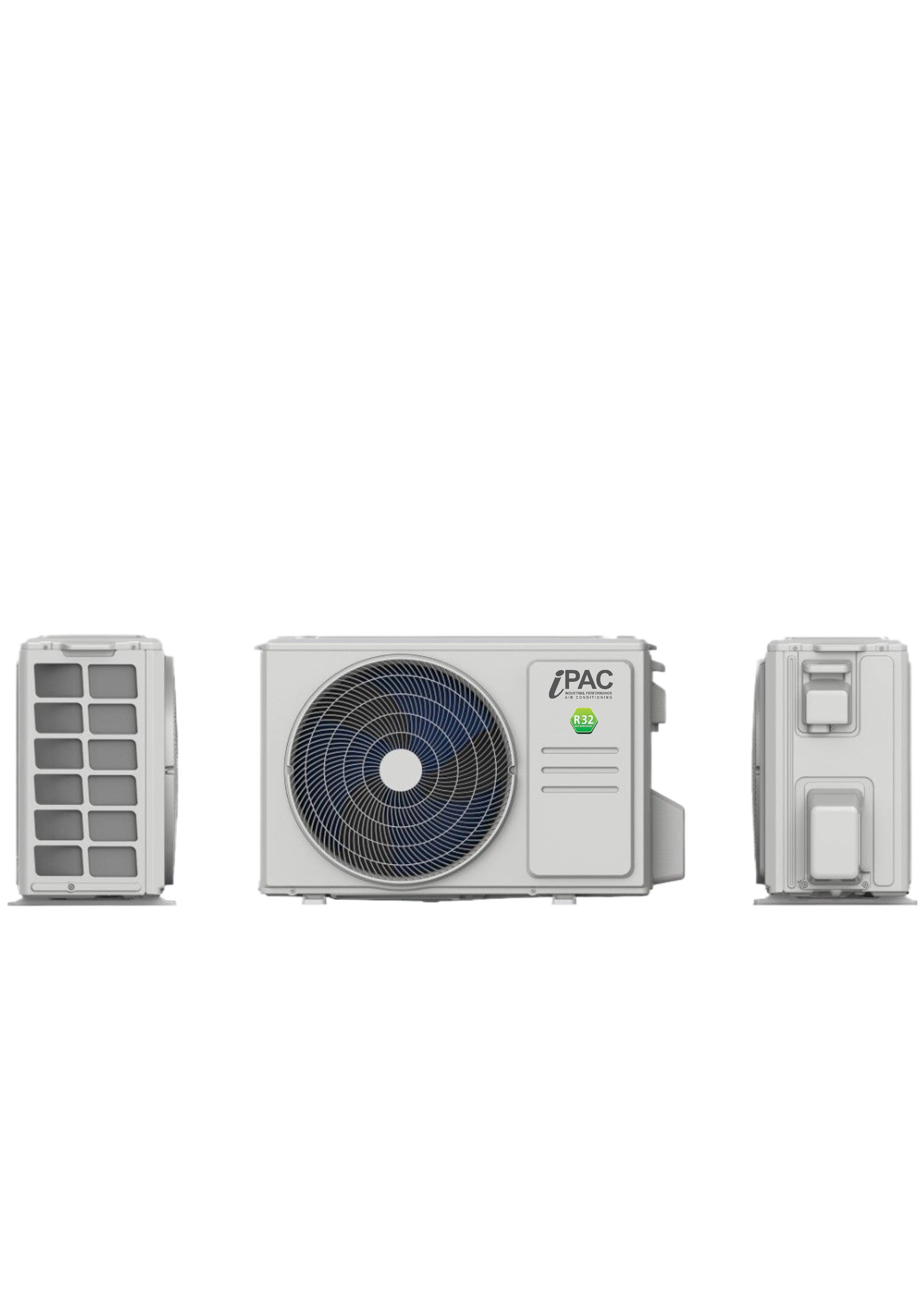

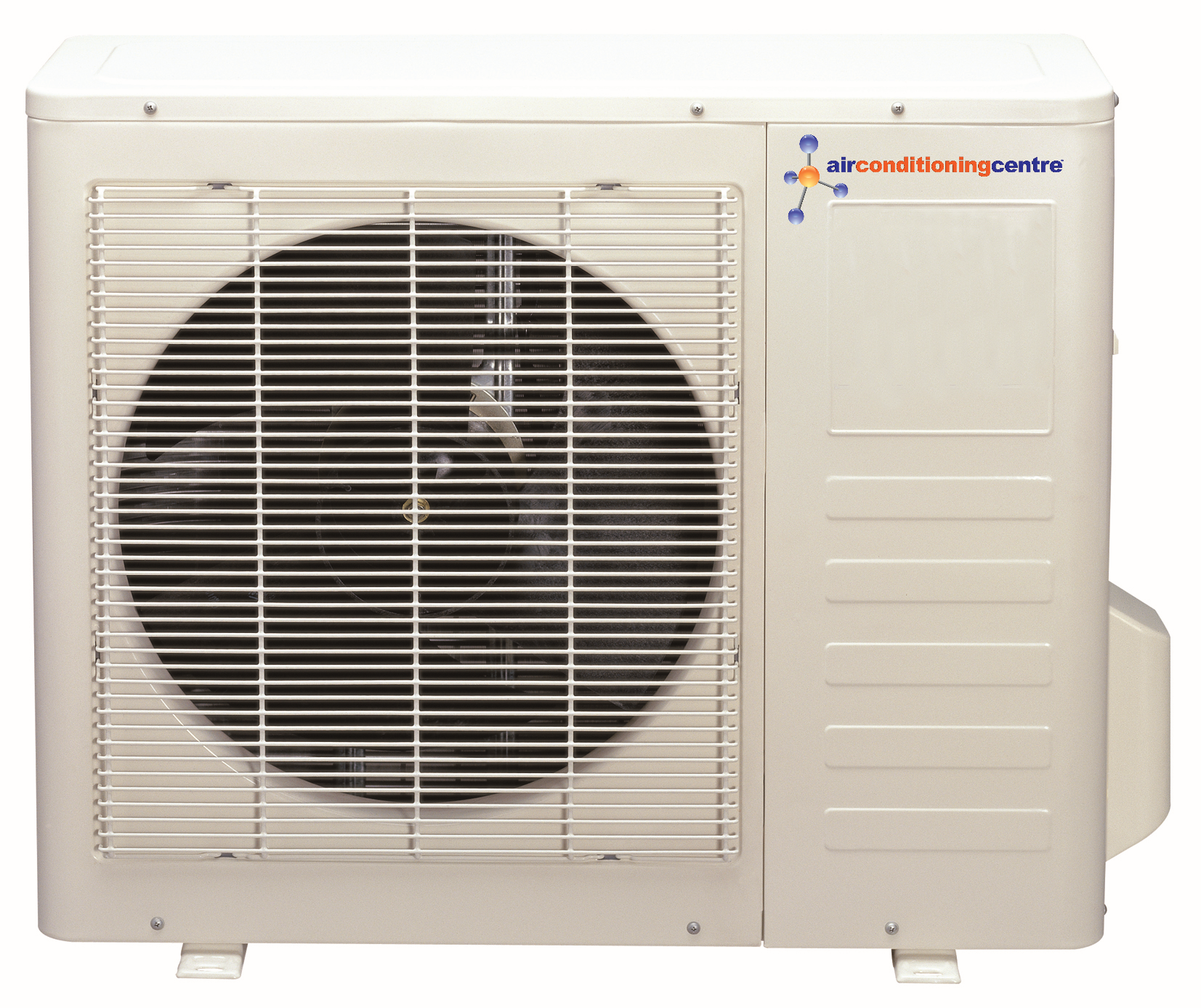

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.



  File:PDF file icon.svg    View Full Product Datasheet

View our Stockists

All ACC products are guaranteed for 12 months (unless otherwise stated) from the date of original purchase. For more information about our Warranty click here.

Category:

Description

INDOOR UNIT

Indoor unit Dimension (W  x Dx H)(body) mm 830x830x205
Packing   (W  x Dx H)(body) mm 910x910x250
Dimension (W  x Dx H)(panel) mm 950x950x55
Packing  (W  x Dx H)(panel) mm 1035x1035x90
Net/Gross weight(body) kg 21.6/25.4
Net/Gross weight kg 6/9

OUTDOOR UNIT

Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing  (W*D*H) mm 995x398x740
Net/Gross weight Kg 43.9/46.9

INDOOR UNIT

Indoor  Model iPAC-74CC
Indoor Code 22022511003339
Average Pdesignc kW 7.0
SEER W/W 6.2
Energy Efficiency Class A++
Seasonal space cooling energy efficiency（ηs,c） % ―
Pdesignh kW 6.0
SCOP W/W 4.0
Energy Efficiency Class A+
Seasonal space heating energy efficiency（ηs,h） % ―
Tbiv ℃ -7
Warmer Pdesignh kW 6.3
SCOP W/W 5.1
Energy Efficiency Class A+++
Tbiv ℃ 2
Tol ℃ -15
Power supply    (Indoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Power supply    (Outdoor ) V,Hz,Ph 220-240V,1Ph，50Hz
Cooling Capacity Btu/h 24000（11263~27000)
Capacity kW 7.03（3.30~7.91）
Input W 2320（780~2748)
Current A 10.2（4.2~12)
Heating Capacity Btu/h 26000（9577~30500)
Capacity kW 7.62（2.81~8.94）
Input W 1900（610~2700)
Current A 8.5（3.6~12.1)
Indoor fan motor Model ZKFN-45-8-1
OldModel ZKFN-45-8-1
Qty 1
Input w 64
Capacitor uF /
Speed(hi/mi/lo) r/min 608/552/496
Indoor coil a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Φ7,Inner groove tube
f.Coil length x height x width mm 2155x168x26.74
g.Number of circuits 4
Indoor air flow (Hi/Mi/Lo) m3/h 1247/1118/992
Indoor sound pressure level (Hi) dB(A) 50/47.5/42/29
Indoor sound power level (Hi) dB(A) 57
Outdoor sound pressure level (Hi) dB(A) 60
Outdoor sound power level (Hi) dB(A) 67
Indoor unit Dimension (W  x Dx H)(body) mm 830x830x205
Packing   (W  x Dx H)(body) mm 910x910x250
Dimension (W  x Dx H)(panel) mm 950x950x55
Packing  (W  x Dx H)(panel) mm 1035x1035x90
Net/Gross weight(body) kg 21.6/25.4
Net/Gross weight kg 6/9
Design pressure MPa 4.3/1.7
Drainage water pipe dia. mm ODΦ25mm
Refrigerant piping Liquid side/ Gas side mm 9.52mm(3/8in)/15.9mm(5/8in)
Controller Standard Remote Control
Operation temperature ℃ 16~30
Room temperature Cooling ℃ 16～32
Heating ℃ 0-30
Qty’per 20’ /40’ /40’HQ Indoor unit 108/234/260

OUTDOOR UNIT

Model iPAC-74CC
Code 22022516001725
Power supply V,Hz,Ph 220-240V,1Ph，50Hz
Max. input consumption W 3700
Max. current A 19
Compressor Model KTM240D43UKT
Type Twin-ROTARY
Brand GMCC
Capacity W 7600
Input W 2045
Rated current(RLA) A 9.30
Refrigerant oil/oil charge ml VG74/620
Outdoor fan motor Model ZKFN-80-8-3
Old Model WZDK80-38G-W(A)
Qty 1
Input W 112
Capacitor uF /
Speed r/min 800/700/580
Outdoor coil a.Number of rows 1.6
b.Tube pitch(a)x row pitch(b) mm 21×13.37
c.Fin spacing mm 1.3
d.Fin type (code) Hydrophilic aluminum
e.Tube outside dia.and type mm Ф7,Inner groove tube
f.Coil length x height x width mm 900*609*44
g.Number of circuits 5
Outdoor air flow 3500
Throttle type EXV+Capillary
Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing  (W*D*H) mm 995x398x740
Net/Gross weight Kg 43.9/46.9
Refrigerant type Type R32
GWP 675
Kg 1.5
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length m 50
Max. difference in level m 25
Ambient temperature Cooling ℃ -15～50
Heating ℃ -20～24
